3dprintable tools?

[Heliosurge]

Dream Air and Super micro-OLED seem to have identical physical lens orientations

@fakeoptimism

If anyone is curious, I printed a simple angle measurement tool

Vernier bevel protractor - Goniometer | Rapporteur | Winkelmesser by AMTprojects | Download free STL model | Printables.com
and compared the angles.

It seems that both Dream Air and Super micro-OLED have 4° between the orientations of left and right lenses.

This matches the default “eye rotation” value in sboys3 driver GUI for Dream Air (2° each eye).

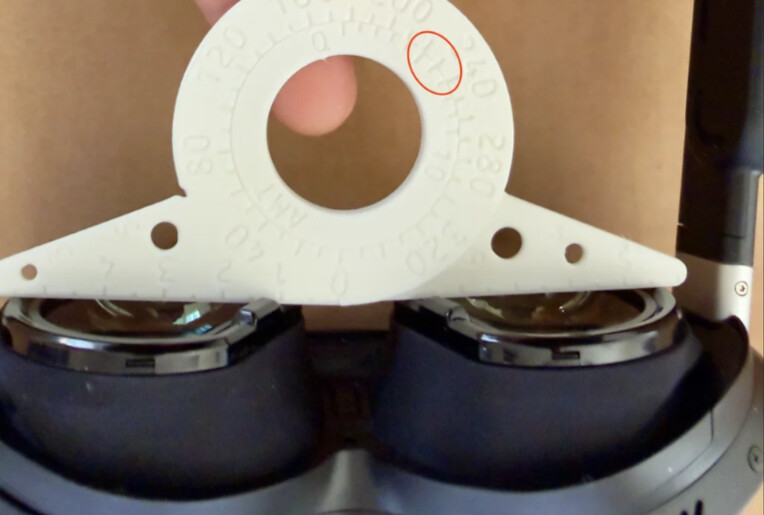

See how the three vernier markings look on the inner scale: 5 is misaligned, 7 is misaligned, but 6 is the closest to aligned. On the outer scale we are between 170 and 180. So the reading is 176. In other words, 4 degrees out of parallel.

---

r/pimax

Maybe this one more special interest or used in maybe a desv for Rissa2009 HmdQ took as a physical way to check canting/rotational value
